Filter Press Feed Pump

Filter press feed pump selection will greatly affect the performance of the filter press system.The filter press feed pump is the true “WORK HORSE” of the entire filter press system.

Filter Press Feed Pump Animation

Filter Press Pump Animation

Filter press pump selection and pump maintenance is a key to “on-line time”.

The pump section process includes the analysis of:



    • Slurry type and characteristics
    • Filtration objectives
    • Filter press operating pressure (100-300 psi)
    • Filter cake use: product or waste?
    • Filter press size
    • Filter plate design: plate type and porting, cake thickness.





The Best Options For Feeding Your Filter Press




EMS Ram Pump


Capacities from 25 GPM (95 l/m) to 475 GPM (1800 l/m)
Pressures up to 700 psi (48 bar)
Suction Lift to 30 feet (9 meters)

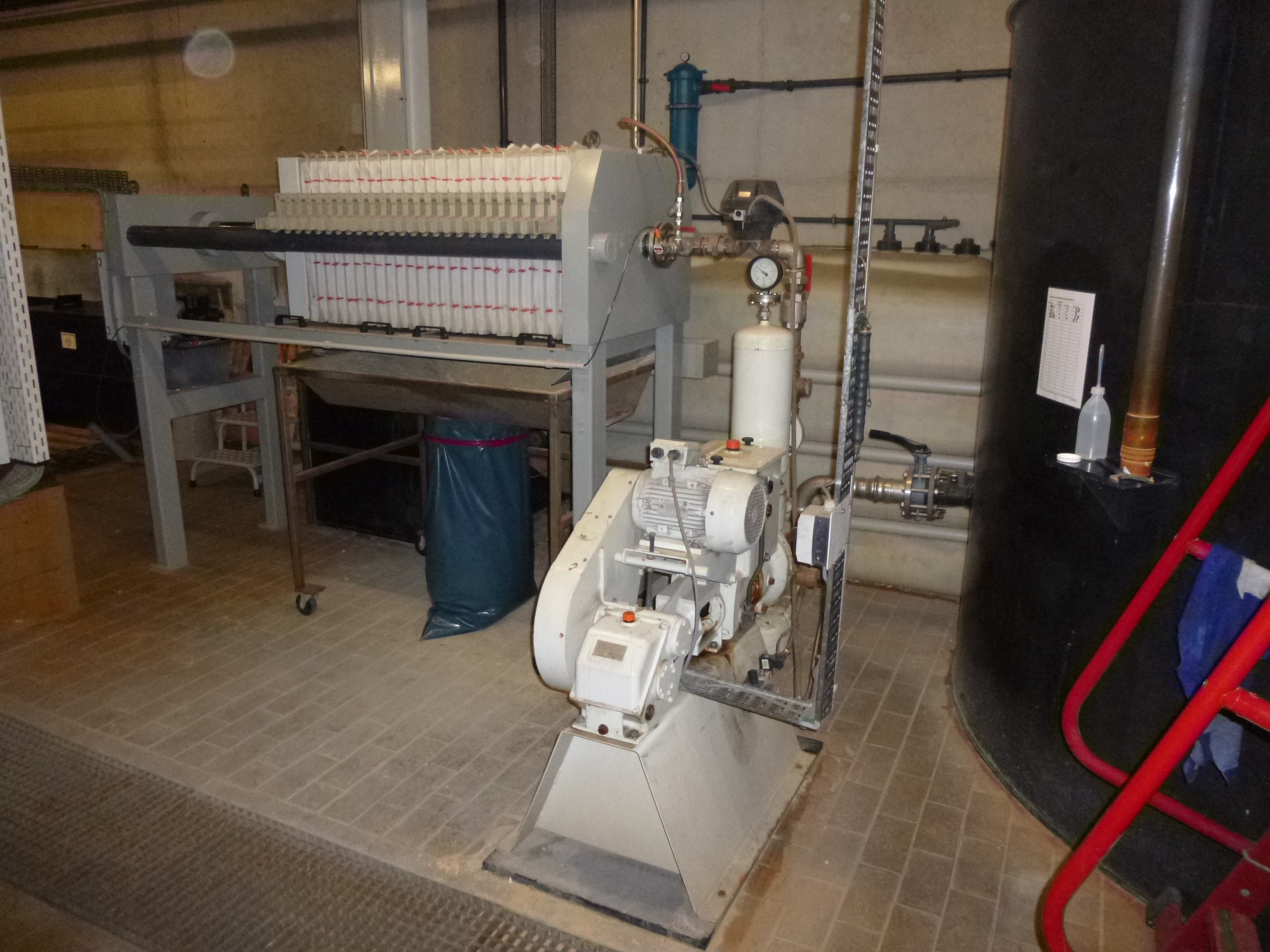

Ram Pump Picture pumping slurry to a filter press

EMS Filter Press Feed Pump



Click here to find out more about our EMS Ram Pumps

Emmerich Piston Diaphragm Pump


Capacities from 2 GPM (7 l/m) to 522 GPM (1990 l/m)
Pressures up to 232 psi (16 bar)

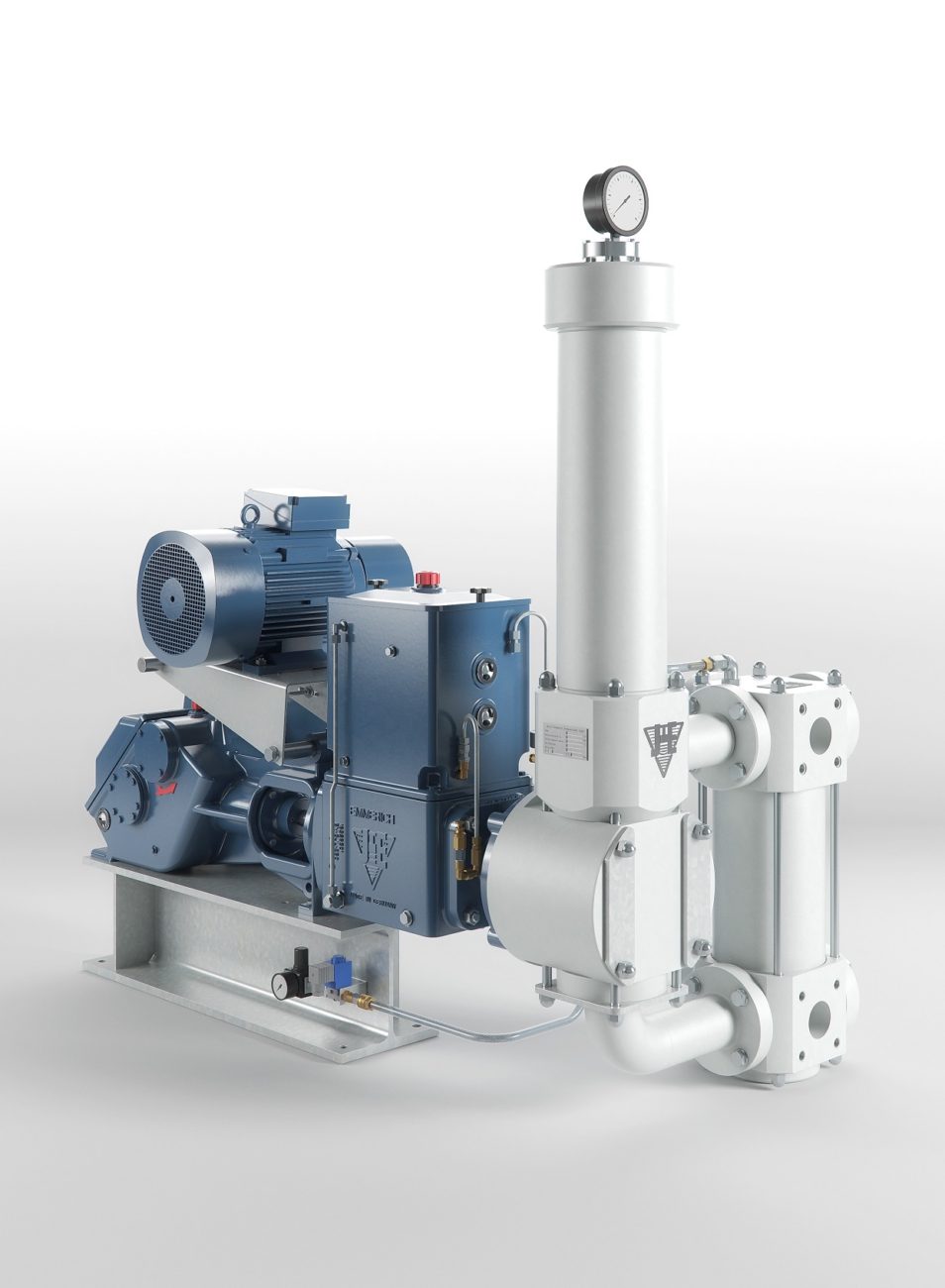

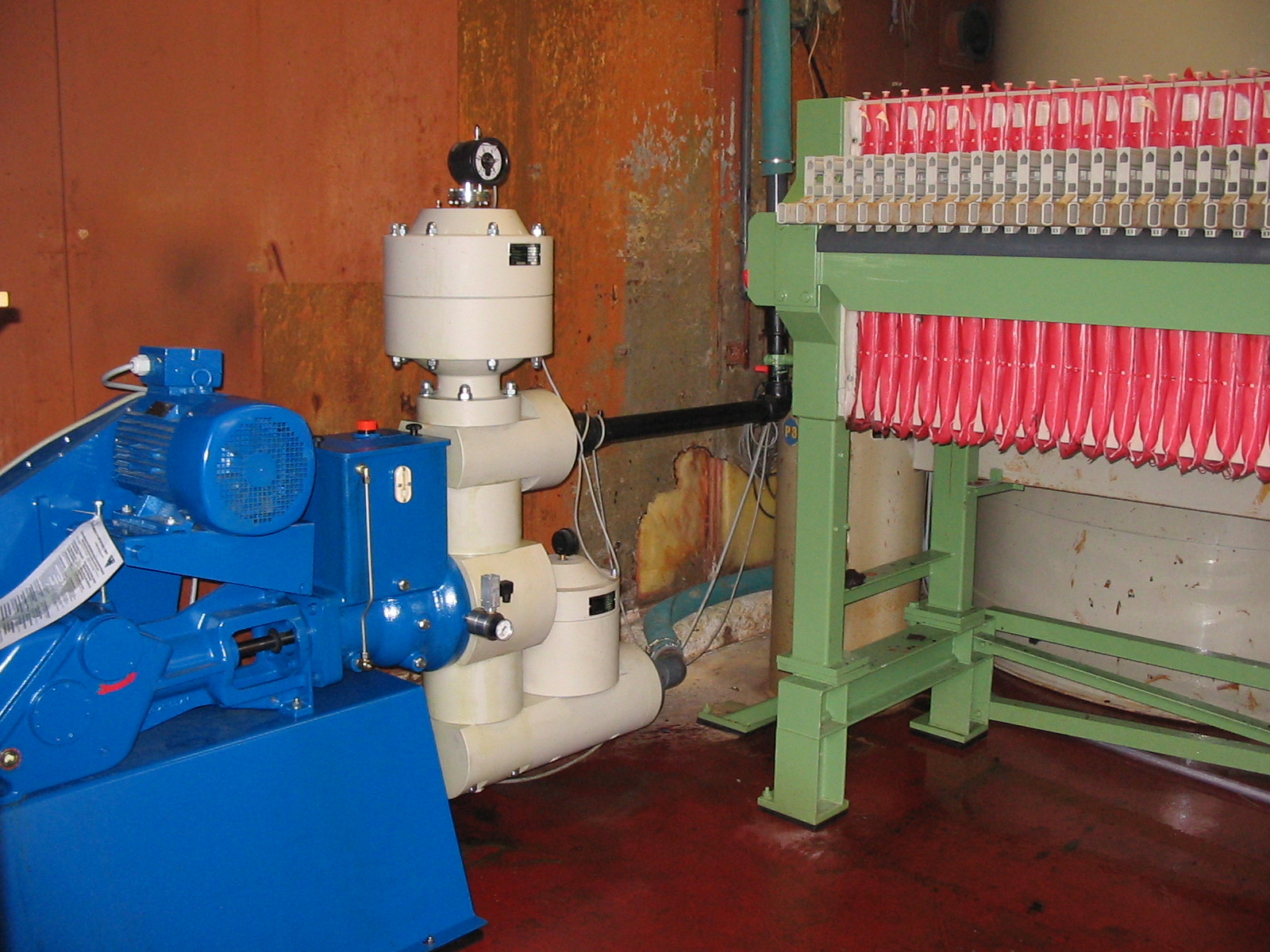

Emmerich Filter Press Pump

Filter Press Pump from Emmerich



Click here to find out more about our Emmerich Piston Diaphragm Pumps



Filter Press Pump



Since 1976, Universal Filtration & Pumping has been specifically designing and selecting filter press pumps for some of the very largest filter press systems in the world.

Some of these presses / pumps operate at filtration pressure up to 450 psi (30 bar) and initial flow rates of 2000 gpm are not so unusual.

Our program of positive displacement pumps covers the full range of press sizes from the 470mm to the 2m x 2m.

We offer the simple design of hydraulically operated Ram Pumps which were first developed for pumping the thick abrasive ceramic slurries for the pottery industry in England in the 1940’s and the Piston Membrane Pumps which evolved for feeding the presses in the 1960’s.

For those of you who have used Progressive Cavity Pumps for feeding the Filter Presses, history shows you spent excessively on maintaining the rotors & stators and the down time cost you filtration time.

Air Diaphragm Pumps are inexpensive, however the power cost of running the air compressor should be part of the analysis.

Centrifugal Pumps are sometimes the correct selection for filtration processes and we often utilize a combination of centrifugal and positive displacement pumps to offer the optimum design of a complete pumping system.

Give Universal Filtration and Pumping Solutions a call to allow us to assist you with the design of your Filter Press Feed Pump system.
